Martindale ET6500 Advanced Multifunction tester (EV / Downloadable)

Martindale ET6500 Advanced Multifunction tester (EV / Downloadable)

Product Code: MARET6500

Price

£995.00 ex. VAT £1194.00 inc. VAT

Available In 3-7 Days

Add To Favourites
Detailed Description

The ET6500 Multifunction Tester performs the measurements required for verification of electrical safety of installations, in accordance with the latest 18th Edition Wiring Regulations. The tester incorporates reliable high-current and non-trip loop testing together with a high level of input protection and a CAT IV safety rating. It also includes voltage measurement and phase sequence indication as standard and features a large colour display with backlight offering easy-to-read measurements and useful ‘Help’ menus. The unit has onboard memory to store and download all installation test results for fast, reliable documentation, exporting data directly into an Excel format.

The ET6500 is designed to test electric vehicle charge points and is supplied with the Martindale TL326EV adapter. It also has the capability to carry out 3-wire and 4-wire earth testing using the optional Martindale ER2KIT-S or ER4KIT-S Earth Spike Kits.

The soft carrying bag, protects the instrument and keeps all accessories together, making it simple and easy to move between locations.

MARET6500-Datasheet.pdf

ET6500 Advanced Multifunction Tester (EV/Downloadable) includes:

TL305EV or TL326EV EV charger adapter
Mains charger

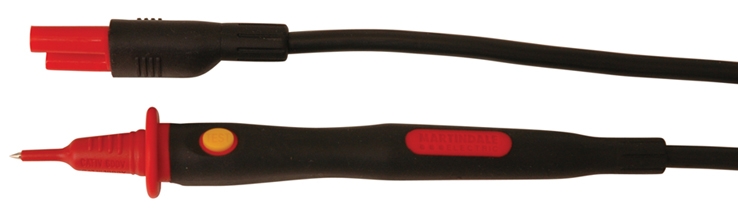

TL180 slimline probe with test button
TL36 4mm test lead set
TL207 mains test lead
6 x rechargeable AA batteries for onboard charging
Test and go carry bag
Instruction manual and verification certificate

Key features

Tests to 18th Edition wiring regulations
CAT III 600v | CAT IV 300v
Fast, reliable high current and non-trip loop testing
High-quality colour display for clear display of results
TL36 4mm test lead set with interchangeable probes and croc clips
Rugged and reliable

ET6000 features:

Auto RCD and ramp test with all results on one screen
Voltage measurement and phase rotation
Multiple easy-to-access help screens

ET6300 additional features:

EV testing ready (with optional adapter)
Low current continuity test
6mA, 650mA and 1000mA RCD tests
TL180 slimline probe with test button
Recharageable batteries plus mains charger

ET6500 additional features:

Three & four wire earth resistance testing
Memory and result reporting (via Excel)
Includes the Martindale EV test adapter

Key Specs:

Voltage range: 0V-500V

Frequency: 10HZ - 499HZ

Insulation range: 50, 100, 250, 500 and 1000V DC

Continuity range: Low R (200mA), Continuity (Low Current)

RCD testing: 6 / 10 / 30 / 100 / 500 / 650 / 1000mA

RCD type: A, AC, B, B+, F+, G, S

Loop impedance: High current

Loop impedance: Non trip

Earth resistance: Yes

EV compatible: Yes

Warranty 2 Years

Full product specification can be found in the product manual or by contacting our team here

Product Comparison:

	Martindale ET6000	Martindale ET6300	Martindale ET6500
Insulation resistance (50-1000V)	✓	✓	✓
Fast non trip loop testing	✓	✓	✓
Voltage measurement & phase rotation	✓	✓	✓
High quality colour display with help screens	✓	✓	✓
Auto RCD & ramp test	✓	✓	✓
CAT III 600V / CAT IV 300V	✓	✓	✓
TL180 slimline test probe		✓	✓
Three / four wire earth resistance test			With optional ER2KIT/S or ER4KIT/S
EV Ready		Optional	✓
Memory storage and result download			✓
