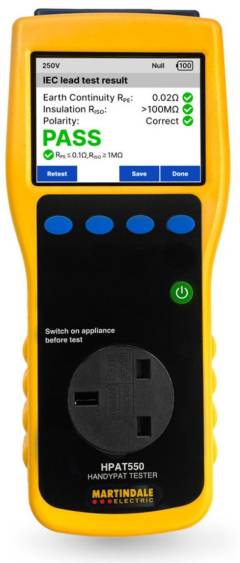

Martindale HPAT550 Rechargeable PAT Tester

Martindale HPAT550 Rechargeable PAT Tester

Product Code: MARHPAT550

Price

£295.00 ex. VAT £354.00 inc. VAT

Available In 3-7 Days

Add To Favourites
Detailed Description

The HPAT550 is an easy-to-use hand-held PAT tester with a simple one-button test selection. The tester is powered by rechargeable batteries and is easily charged via the integral USB-C port

Its lightweight, portable design and the bright colour display make it ideal for testing in all locations. A single button press activates either a full Class I, Class II or lead test without any further interaction by the user. The display has clear PASS / FAIL indicators and shows all test results. Simple connection diagrams are also shown on the screen. HPAT550 is supplied with an extension lead adaptor, an earth bond probe with clip, a USB-C to USB-A cable for charging and carry case with a separate pocket for accessories.

The HPAT Series of handheld PAT testers can be used for testing all types of portable appliances. They are designed for ease of use with one-button automatic testing while the small, lightweight design gives ultimate portability. Both models feature a bright, high-quality colour display for ease of use and can be charged via the integral USB-C charging port. The 250V insulation test option is ideal for surge-protected devices.

HPAT550 Comes Supplied With:

TL67 earth bond probe
EX322 IEC adaptor lead
TC57 carry case
USB-A to USB-C cable
TL178 null pin on keyring
Instruction manual and verification certificate.

MARHPAT550-650.pdf

Key features:

Compact, portable design
High-quality colour display with optional help screens
Clear and simple PASS / FAIL indication with measured values
Automatic testing Class I, Class II & IEC power lead tests
IT safe 200mA earth bond test
Selectable 250V or 500V insulation test
USB-C rechargeable, fast charge support and power save mode

Premium features HPAT650 (see listing):

Memory storage with on-screen recall
Adjustable test limits for long mains leads
Single and sequenced test execution mode
Substitute leakage test at reduced voltage for checking earth leakage

Key Specification:

Earth continuity: Test current: 200mA DC Range: 0-19.99Ω Resolution: 0.01Ω Accuracy: ± (5% rdg + 2 dgt) Fixed pass limits: ≤ 0.10Ω/≤ 0.20Ω

Insulation: Test Voltage: 250V/500V DC selectable Test current: 1.5mA

Insulation: Test Voltage: 250V/500V DC selectable

Warranty: 2 Years

*Full product specification can be found in the Product Downloads tab above.

Product Comparison

	HPAT550	HPAT650
Test values displayed
Selectable limits
Test mode	Auto	Auto / Manual
Lead test
Earth continuity test current	200mA	200mA
Insulation test voltage	250 / 500V	250 / 500V
110V test	with accessory	with accessory
Memory		100 results for on screen recall
Supply	Rechargeable via USB-C	Rechargeable via USB-C
