HPAT650 Advanced PAT Tester

Product Code: MARHPAT650

Price

£379.00 ex. VAT £454.80 inc. VAT

Available In 3-7 Days

Add To Favourites
Detailed Description

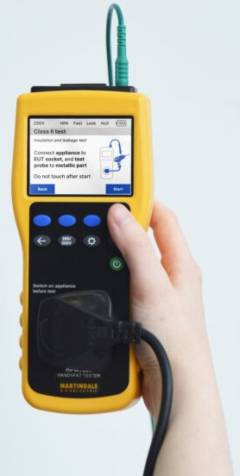

The HPAT650 PAT is a user-friendly hand-held PAT tester that is ideal for testing all types of portable appliances. Its lightweight, portable design makes it ideal for testing in all locations. The bright colour display has clear PASS / FAIL indicators and shows all test results. Simple connection diagrams are also shown on the screen.

The HPAT650 features both an automatic and manual test mode. In automatic mode, the tester will run through a selected test sequence without any further user interaction while the simple-to-operate manual mode is useful for single tests or diagnostics.

Pass levels can be adjusted to test appliances with long power cords or extension leads. The HPAT650 stores test data for up to 100 appliances for on-screen recall and also features a substitute leakage test capability.

The tester is powered by rechargeable batteries and is easily charged via the integral USB-C port.

HPAT650 is supplied with an extension lead adaptor, an earth bond probe with clip, a USB-C to USB-A cable for charging and carry case with a separate pocket for accessories.

HPAT650 Comes Supplied With:

HPAT650: TL67 earth bond probe
EX322 adaptor lead
TL178 null pin on keyring
TC57 carry case
USB-A to USB-C cable
Instruction manual and verification certificate

MARHPAT550-650.pdf

Key features:

Compact, portable design
High-quality colour display with optional help screens
Clear and simple PASS / FAIL indication with measured values
Automatic testing Class I, Class II & IEC power lead tests
IT safe 200mA earth bond test
Selectable 250V or 500V insulation test
USB-C rechargeable, fast charge support and power save mode

Premium features HPAT650:

Memory storage with on-screen recall
Adjustable test limits for long mains leads
Single and sequenced test execution mode
Substitute leakage test at reduced voltage for checking earth leakage

Key Specification:

Earth continuity: Test current: 200mA DC Range: 0-19.99Ω Resolution: 0.01Ω Accuracy: ± (5% rdg + 2 dgt) Fixed pass limits: ≤ 0.10Ω/≤ 0.20Ω

Insulation: Test Voltage: 250V/500V DC selectable Test current: 1.5mA

Insulation: Test Voltage: 250V/500V DC selectable

Warranty: 2 Years

*Full product specification can be found in the Product Downloads tab above.

Product Comparison

	HPAT550	HPAT650
Test values displayed
Selectable limits
Test mode	Auto	Auto / Manual
Lead test
Earth continuity test current	200mA	200mA
Insulation test voltage	250 / 500V	250 / 500V
110V test	with accessory	with accessory
Memory		100 results for on screen recall
Supply	Rechargeable via USB-C	Rechargeable via USB-C
